GU-149-Bpage 12 of 33

CB 2 Series

Administrator Guide

CB 2-e Installation Instructions (continued)

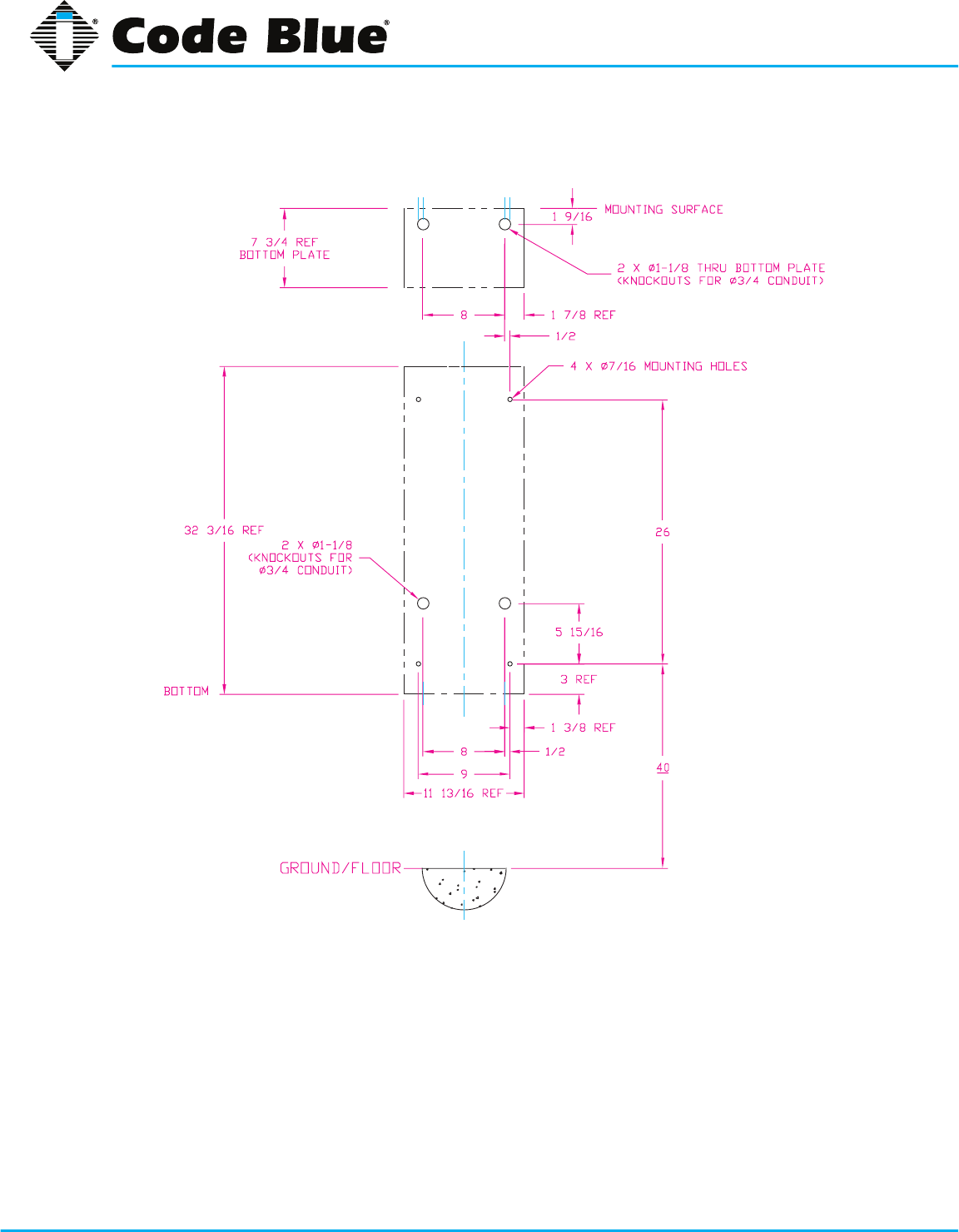

Suggested installation dimensions shown from ground to lower right mounting hole are for single

button faceplates.

• For dual button faceplate, deduct 3.25 inches.

• For keypad faceplate, deduct 4.5 inches.

• For wheelchair direct facing access only, deduct 6 inches.

DISCLAIMER: The dimensions above are intended as guidelines only. For specic installation

requirements reference your local codes.

All wiring must be installed and connected by experienced and certied personnel to meet local and

national electrical codes, and will include a service disconnect.
